ROTARY ABRASER

Code: 10040-00

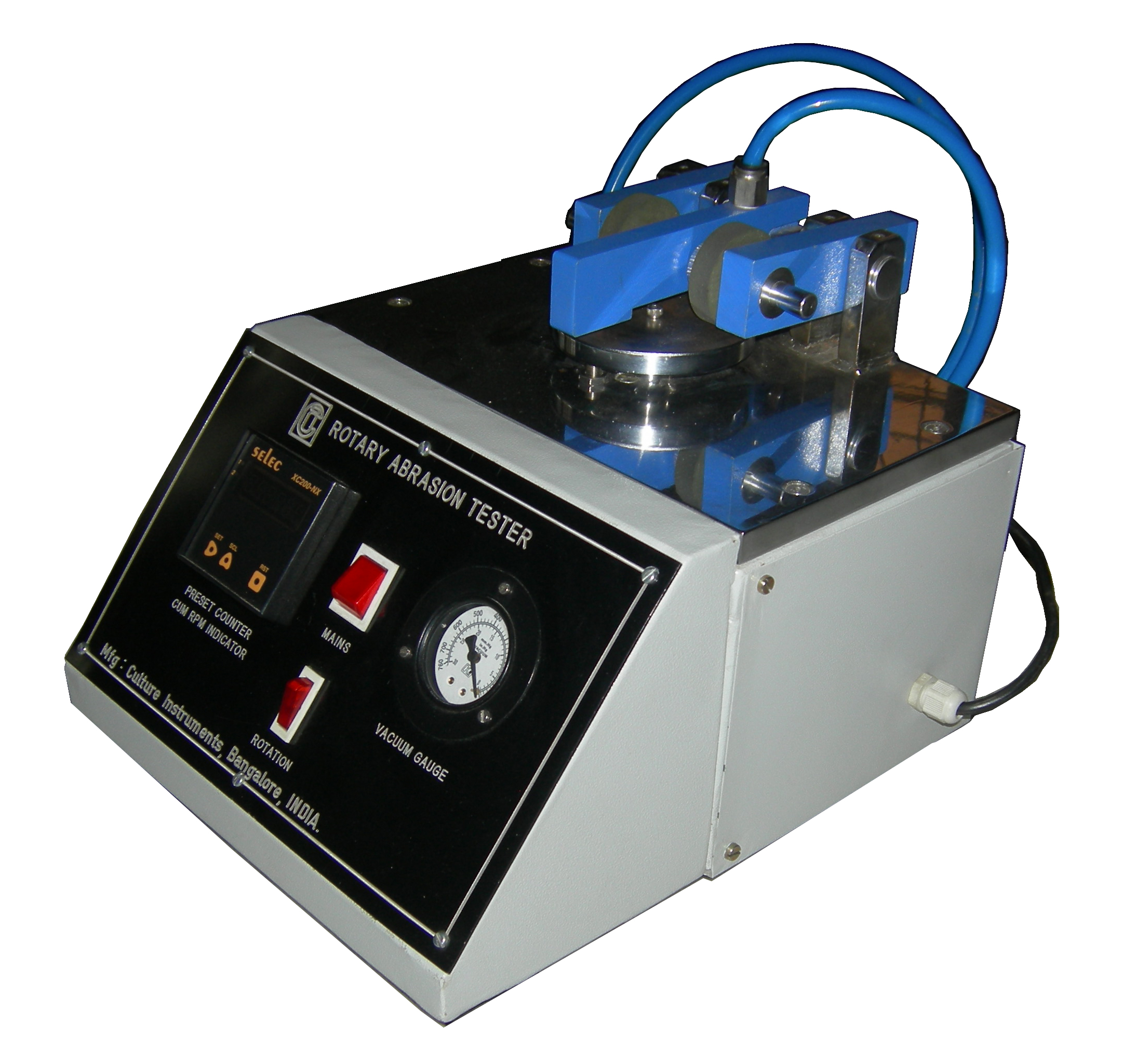

Description: ROTARY ABRASION TESTER (TABER)

Consisting of a turn table to rotate through geared motor between 58 TO 62 RPM with test specimen clamping arrangement, double abrasive wheels, mounted on a common axis with holding and lifting device. The test machine is provided with suction device arrangement fitted with two nozzles, but without suction pump. Complete with 500gm weights digital revolution counter and RPM indicator.

Operation on 230V A.C Mains.50 Hz, single phase.

 ACCESSORIES & SPARES

a.Hard abrasion wheel for above Taber CS-17

b.Hard abrasion wheel for above Taber CS-10

c.Vacuum device/pump

d.Additional Dead weights 1000gm

e.Round MS 1.6mm Test panels of 100dia

f.Moulded Rubber rings

g.CALIBRATION CHARGES  (if required)

*.RPM of the test table

*.Preset counter

*.Add on 500gm weights

*.Vacuum gauge
