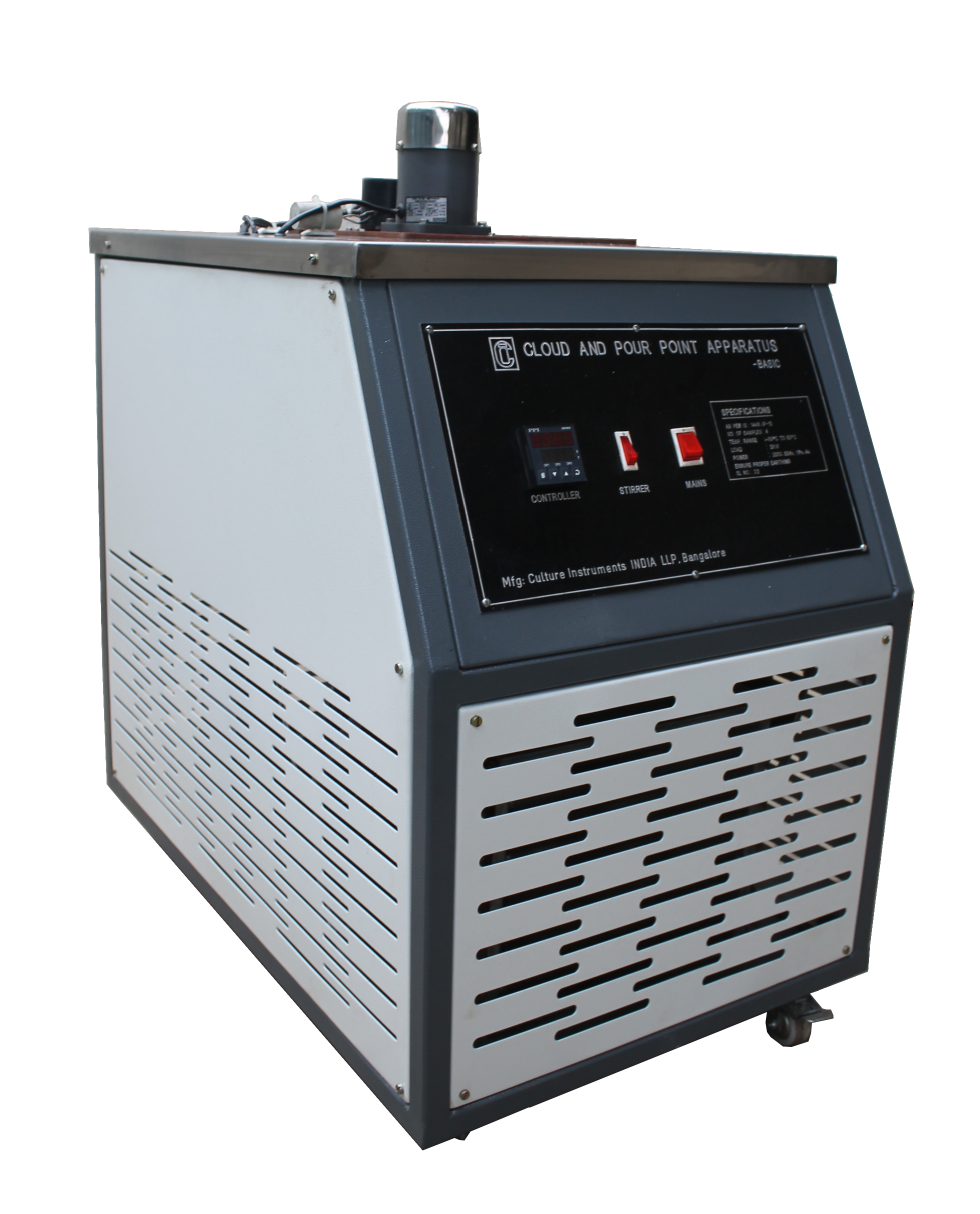

AUTOMATIC CLOUD & POUR POINT APPARTUS
Code: 11015-03
Description: COMPLIANCE: ASTM D2386; IP 16; ISO 3013
The pour point system consists of 4 independent sample vessels with optical sensors for cloud point detection and 1 station has a motorised carriage to remove and tilt the tube to check for pour point in a single bath. It is provided with Touch screen/LCD Screen user interface with individual display of test status per station. The Pour point can be user defined for 45° or 90° bending of sample tube.
MODELS
*11015-00 - MANUAL SYSTEM - 1 TEST
*11015-01 - MANUAL SYSTEM - 4 TEST
*11015-02 - Refrigerated upto -30°C - 4 TEST
*11015-03 - Refrigerated upto -70°C - 4 TEST
OPTIONAL ACCESSORIES & SPARES TEST
*11015-04 - AUTOMATIC FREEZING/CLOUD POINT DETECTION SYSTEM - 4 TEST
*11015-05 - POUR POINT ATTACHMENT FOR 1 TEST + CLOUD POINT FOR 4 TEST
*11015-06 - Touch Screen interface with PC software and Lan connectivity.
*11015-10 - Glass Test Vessel.
*11015-11 - Glass test vessel for automatic system
*11015-08 - Spare Copper Jacket
*11015-09 - Spare Insulating ring/gasket
III party thermal calibration certificate. ASTM 114C, Thermometer
