Name: LENGTH COMPARATOR
Code: 18055-00
Description: LENGTH/ELONGATION GAUGE, Used to determine the elongation index of aggregate. Aggregate particle are considered elongated when their length is more than 1.8 of the normal size.
Code: 18055-00
Description: LENGTH/ELONGATION GAUGE, Used to determine the elongation index of aggregate. Aggregate particle are considered elongated when their length is more than 1.8 of the normal size.
Name: LE-CHATELIER MOULD
Code: 18056-00
Description: LE-CHATELIER MOULD, Made of brass as per IS:4031-1968 with lead weight, glass plate & top plates. Le-Chatelier flask 'BOROSIL 'GLASS,
Code: 18056-00
Description: LE-CHATELIER MOULD, Made of brass as per IS:4031-1968 with lead weight, glass plate & top plates. Le-Chatelier flask 'BOROSIL 'GLASS,
Name: MARSH CONE
Code: 18057-00
Description: MARSH CONE, This cone is used to find out Viscosity of Bentinite slurry and like material. The Marsh cone is 6" in diameter at the top and 12" long, and tapared to join a tube 2" long and 3/6" inside dia. The capacity of the funnel is 1500 cc.
Code: 18057-00
Description: MARSH CONE, This cone is used to find out Viscosity of Bentinite slurry and like material. The Marsh cone is 6" in diameter at the top and 12" long, and tapared to join a tube 2" long and 3/6" inside dia. The capacity of the funnel is 1500 cc.

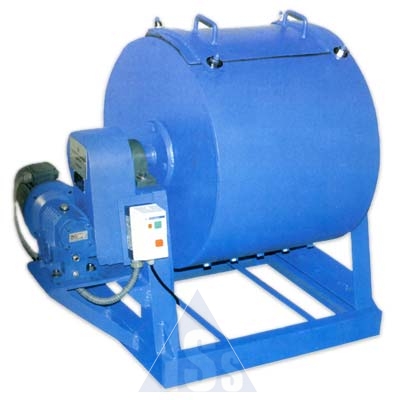

Name: LOS ANGELS ABRASION TESTER
Code: 18062-00
Description: LOS ANGELS ABRASION TESTING, AS per IS 2386 Consists of a hollow steel cylinder closed at both ends, having an inside diameter 700mm and an inside length of 500mm.
Code: 18062-00
Description: LOS ANGELS ABRASION TESTING, AS per IS 2386 Consists of a hollow steel cylinder closed at both ends, having an inside diameter 700mm and an inside length of 500mm.
Name: BEAM MOULD
Code: 18063
Description: BEAM MOULD, Made of cast iron. The moulds are made of 4 plates assembled together.Supplied complete with base plate. Faces are Machined flat to ± 0.2 mm and finished in size to 0.2mm.
Code: 18063
Description: BEAM MOULD, Made of cast iron. The moulds are made of 4 plates assembled together.Supplied complete with base plate. Faces are Machined flat to ± 0.2 mm and finished in size to 0.2mm.

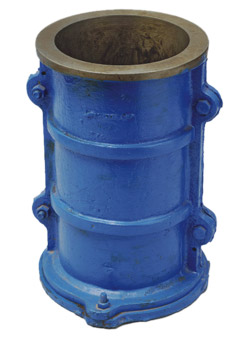

Name: CYLINDRICAL MOULD
Code: 18063
Description: CYLINDRICAL MOULD, The mould is split vertically into 2 parts the main internal diameters within plus minus 0.2mm and height is within plus minus 1mm. The ends are machined to 0.05. The base plate and top plate are machined flat.
Code: 18063
Description: CYLINDRICAL MOULD, The mould is split vertically into 2 parts the main internal diameters within plus minus 0.2mm and height is within plus minus 1mm. The ends are machined to 0.05. The base plate and top plate are machined flat.
Name: PU / PLASTIC MOULDS
Code: 18063
Description: PU / PLASTIC MOULDS, Light in weight, easy to handle, ideal for site use, Precise and economical, as per standards.
Code: 18063
Description: PU / PLASTIC MOULDS, Light in weight, easy to handle, ideal for site use, Precise and economical, as per standards.
Name: CUBE MOULD
Code: 18063-00
Description: CUBE MOULD, These are available in different size and are made According to Indian and British Standards. All moulds are supplied complete with base plate. Cube Moulds are made of cast iron / steel with base plate
Code: 18063-00
Description: CUBE MOULD, These are available in different size and are made According to Indian and British Standards. All moulds are supplied complete with base plate. Cube Moulds are made of cast iron / steel with base plate
Name: BAR TRACKER
Code: 18066
Description: BAR TRACKER, Used to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, furthermore it is also used to identify the location, orientation and diameter of reinforcement bars. As per BS: 1881-204,
Code: 18066
Description: BAR TRACKER, Used to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, furthermore it is also used to identify the location, orientation and diameter of reinforcement bars. As per BS: 1881-204,
Name: SLUMP TEST APPARATUS
Code: 18066-00
Description: SLUMP TEST APPARATUS, As Per Is:7320, Is: 1199. consists of slump cone Fitted with handles and foot pieces in position. Base plate in octagonal shape two clamps slide Over the foot grips of a standard slump cone and Hold it securely while filling and rodding.
Code: 18066-00
Description: SLUMP TEST APPARATUS, As Per Is:7320, Is: 1199. consists of slump cone Fitted with handles and foot pieces in position. Base plate in octagonal shape two clamps slide Over the foot grips of a standard slump cone and Hold it securely while filling and rodding.
