Name: PLASTIC LIMIT APPARATUS
Code: 18029
Description: PLASTIC LIMIT APPARATUS, As per IS 2720 (Part - V), To find the moisture content at which it has plasticity. It is defined as the water content at which a soil will just begin to crumble when rolled of 3mm dia.
Code: 18029
Description: PLASTIC LIMIT APPARATUS, As per IS 2720 (Part - V), To find the moisture content at which it has plasticity. It is defined as the water content at which a soil will just begin to crumble when rolled of 3mm dia.

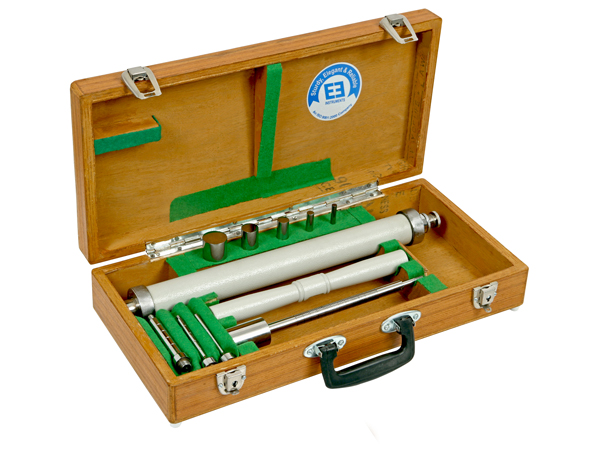

Name: PROCTOR NEEDLE (SPRING TYPE)
Code: 18031-00
Description: PROCTOR NEEDLE (SPRING TYPE), One Needle point set comprising one each of 0.25, 0.5, 1, 1.5, 2, 3, 5 and 6 sq. cm
Code: 18031-00
Description: PROCTOR NEEDLE (SPRING TYPE), One Needle point set comprising one each of 0.25, 0.5, 1, 1.5, 2, 3, 5 and 6 sq. cm
Name: PROCTOR NEEDLE (HYDRULIC)
Code: 18031-01
Description: PROCTOR NEEDLE (HYDRULIC), This is identical to (Spring type) except that the penetration pressure on the needle is conveyed through a hydraulic system on a pressure gauge 0 - 70 kg x 1 kg.
Code: 18031-01
Description: PROCTOR NEEDLE (HYDRULIC), This is identical to (Spring type) except that the penetration pressure on the needle is conveyed through a hydraulic system on a pressure gauge 0 - 70 kg x 1 kg.

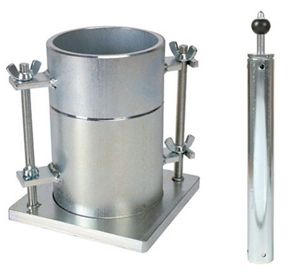

Name: PROCTOR MOULD AND RAMMERS
Code: 18032-00
Description: PROCTOR MOULD AND RAMMERS, As per IS:2720 100 mm dia x 127.3 mm Ht., Capacity: 1000cc.
Code: 18032-00
Description: PROCTOR MOULD AND RAMMERS, As per IS:2720 100 mm dia x 127.3 mm Ht., Capacity: 1000cc.
Name: RAPID MOISTURE METER
Code: 18033
Description: RAPID MOISTURE METER, A portable test method for the determination of moisture content of soils, sand and fine aggregates. The unit consists of a pressure vessel with clamp for sealing cap.
Code: 18033
Description: RAPID MOISTURE METER, A portable test method for the determination of moisture content of soils, sand and fine aggregates. The unit consists of a pressure vessel with clamp for sealing cap.
Name: FIELD DENSITY (SAND REPLACEMENT)
Code: 18034
Description: FIELD DENSITY (SAND REPLACEMENT), As per IS:2720, Sand Pouring Cylinder with calibrating can & metal tray of 30cm x 30cm with centre hole of 10cm.dia.
Code: 18034
Description: FIELD DENSITY (SAND REPLACEMENT), As per IS:2720, Sand Pouring Cylinder with calibrating can & metal tray of 30cm x 30cm with centre hole of 10cm.dia.

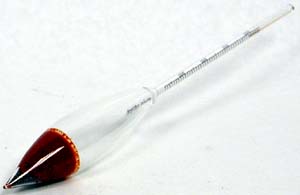

Name: SOIL HYDROMETER
Code: 18035
Description: SOIL HYDROMETER, AS Per IS:2720 (PART VI), Basically used for analysis of grain size distribution of fine grained soil. Range:0.995-1.030
Code: 18035
Description: SOIL HYDROMETER, AS Per IS:2720 (PART VI), Basically used for analysis of grain size distribution of fine grained soil. Range:0.995-1.030
Name: SHRINKAGE LIMIT APPARATUS
Code: 18038
Description: SHRINKAGE LIMIT APPARATUS, As per IS 2720 (Part - V), It is the maximum water content at which a reduction in water does not cause an appreciable reduction in volume of the soil mass.Measuring Cylinder 25 ml
Code: 18038
Description: SHRINKAGE LIMIT APPARATUS, As per IS 2720 (Part - V), It is the maximum water content at which a reduction in water does not cause an appreciable reduction in volume of the soil mass.Measuring Cylinder 25 ml
Name: SAMPLING TUBES
Code: 18039
Description: SAMPLING TUBES, Used to remove soil samples in the field. Size: 38mm x 150mm, 38mm x 200mm, 38mm x 225mm, 38mm x 300mm
Code: 18039
Description: SAMPLING TUBES, Used to remove soil samples in the field. Size: 38mm x 150mm, 38mm x 200mm, 38mm x 225mm, 38mm x 300mm
Name: TRIAXIAL LOADING FRAME
Code: 18041
Description: TRIAXIAL LOADING FRAME, Consists of a Loading Frame motorised capacity 50KN giving 30 rates of strain from 0.00048 mm/min to 6 mm/min. Load cell 10KN capacity, Pore Pressure transducer : 20 bars, Displacement sensor having a range of +/- 10 mm, Triaxial cell, As per IS:2720 part XII for 38 mm dia.
Code: 18041
Description: TRIAXIAL LOADING FRAME, Consists of a Loading Frame motorised capacity 50KN giving 30 rates of strain from 0.00048 mm/min to 6 mm/min. Load cell 10KN capacity, Pore Pressure transducer : 20 bars, Displacement sensor having a range of +/- 10 mm, Triaxial cell, As per IS:2720 part XII for 38 mm dia.
