Name: VICAT NEEDLE APPARATUS
Code: 18068-00
Description: TIC” VICAT NEEDLE APPARATUS, The apparatus consists of a metal frame with sliding rod. An adjustable indicator moves over a graduated scale. The needle is attached to the bottom of the rod. As per ISS for normal consistency & setting Time of Cement.
Code: 18068-00
Description: TIC” VICAT NEEDLE APPARATUS, The apparatus consists of a metal frame with sliding rod. An adjustable indicator moves over a graduated scale. The needle is attached to the bottom of the rod. As per ISS for normal consistency & setting Time of Cement.
Name: AUTOMATIC VICAT NEEDLE APPARATUS
Code: 18068-02
Description: VICAMATIC, automatic electronic apparatus for cement setting measurement. operation on 230V, 50hz, 1phase, (initial needle 1.13mm dia., vicat mould and glass plate)
Code: 18068-02
Description: VICAMATIC, automatic electronic apparatus for cement setting measurement. operation on 230V, 50hz, 1phase, (initial needle 1.13mm dia., vicat mould and glass plate)
Name: "TIC" VIBRATING TABLE
Code: 18070
Description: "TIC" VIBRATING TABLE, Proper compaction of cement concrete while casting specimens for compression testing is essential to achieve higher compressive strength. The table top is suitable to hold 4 cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation.
Code: 18070
Description: "TIC" VIBRATING TABLE, Proper compaction of cement concrete while casting specimens for compression testing is essential to achieve higher compressive strength. The table top is suitable to hold 4 cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation.
Name: RIFFLE SAMPLE DIVIDER
Code: 18072-00
Description: RIFFLE SAMPLE DIVIDER, As per IS: 1607, BS : 812, The standard sizes are :13mm x 14 slots, 20mm x 16 slots, 25mm x 16 slots, and 40mm x 16 slots
Code: 18072-00
Description: RIFFLE SAMPLE DIVIDER, As per IS: 1607, BS : 812, The standard sizes are :13mm x 14 slots, 20mm x 16 slots, 25mm x 16 slots, and 40mm x 16 slots
Name: STANDARD TAR VISCOMETER
Code: 18073
Description: STANDARD TAR VISCOMETER, with Electrical Heating with energy regulator, Suitable for Operation on 220V, 50 Hz, single phase, AC supply.
Code: 18073
Description: STANDARD TAR VISCOMETER, with Electrical Heating with energy regulator, Suitable for Operation on 220V, 50 Hz, single phase, AC supply.
Name: DUCTILITY TESTING MACHINE
Code: 18074
Description: DUCTILITY TESTING MACHINE, As per IS: 1208, Ductility is defined as distance in cms. to which a standard bitumen can be stretched before the thread breaks. The briquette is stretched at the rate of 50mm/min., at a temperature of 27C.
Code: 18074
Description: DUCTILITY TESTING MACHINE, As per IS: 1208, Ductility is defined as distance in cms. to which a standard bitumen can be stretched before the thread breaks. The briquette is stretched at the rate of 50mm/min., at a temperature of 27C.

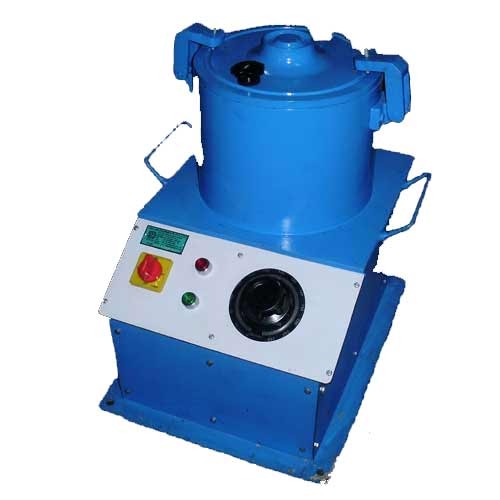

Name: BITUMEN EXTRACTOR
Code: 18077
Description: BITUMEN EXTRACTOR ELECTRICALLY OPERATED, but shaft is rotated by an electric Motor and belt pitch pulley system. Variable speed 2000 RPM to 3500 RPM. Operated on 230V, AC Mains. The gears operate in oil bath with splash lubrication. Complete with 25 filter discs.
Code: 18077
Description: BITUMEN EXTRACTOR ELECTRICALLY OPERATED, but shaft is rotated by an electric Motor and belt pitch pulley system. Variable speed 2000 RPM to 3500 RPM. Operated on 230V, AC Mains. The gears operate in oil bath with splash lubrication. Complete with 25 filter discs.

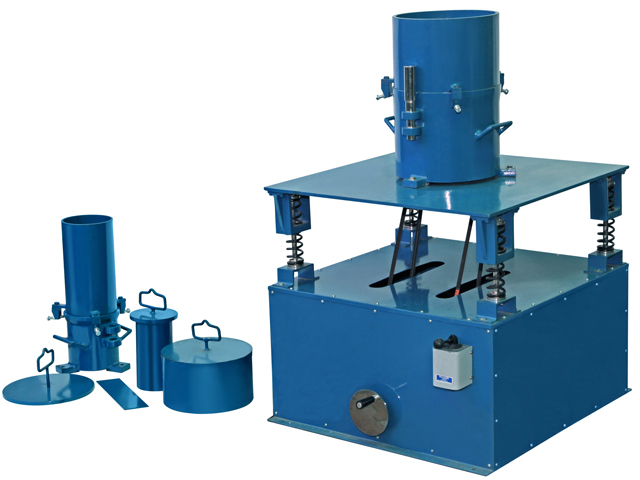

Name: RELATIVE DENSITY APPARATUS
Code: 18078
Description: RELATIVE DENSITY APPARATUS, The Equipment consists of one each: Vibratory table with a cushioned steel vibrating deck about 75cm x 75cm. It has a frequency of approx. 3600 vibrations per minute under 115kgs load.
Code: 18078
Description: RELATIVE DENSITY APPARATUS, The Equipment consists of one each: Vibratory table with a cushioned steel vibrating deck about 75cm x 75cm. It has a frequency of approx. 3600 vibrations per minute under 115kgs load.
Name: AUTOMATIC SAMPLE COMPACTOR
Code: 18079
Description: AUTOMATIC SAMPLE COMPACTOR, operation on 230V, single phase A.C. Weight of the rammer - 2.60 kg for light compaction and 4.89 kg for heavy compaction. Height of fall of rammer - 310 mm and 450 mm
Code: 18079
Description: AUTOMATIC SAMPLE COMPACTOR, operation on 230V, single phase A.C. Weight of the rammer - 2.60 kg for light compaction and 4.89 kg for heavy compaction. Height of fall of rammer - 310 mm and 450 mm

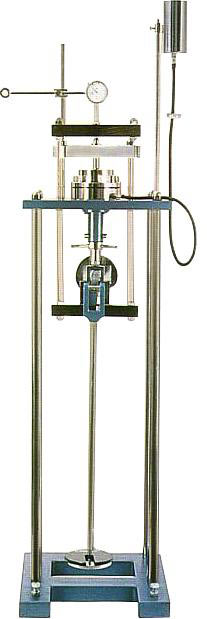

Name: CONSOLIDATION APPARATUS
Code: 18080
Description: CONSOLIDATION APPARATUS SINGLE / THREE GANG, Consists of Loading Unit, maximum capacity 20kg/cm2, consisting of a loading yoke connected to a lever arm with a counter-balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand.
Code: 18080
Description: CONSOLIDATION APPARATUS SINGLE / THREE GANG, Consists of Loading Unit, maximum capacity 20kg/cm2, consisting of a loading yoke connected to a lever arm with a counter-balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand.
