Name: “TIC” VIBRATING TABLE
Code: 18070
Description: “TIC” VIBRATING TABLE, . Vibrating Table is ideally suited for this purpose. The table top is suitable to hold 4 cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation. operation on 220 V, 50 Hz, Single Phase, AC supply.
Code: 18070
Description: “TIC” VIBRATING TABLE, . Vibrating Table is ideally suited for this purpose. The table top is suitable to hold 4 cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation. operation on 220 V, 50 Hz, Single Phase, AC supply.
Name: RIFFLE SAMPLE DIVIDER
Code: 18072
Description: RIFFLE SAMPLE DIVIDER, As per IS: 1607, BS : 812. The standard sizes are :13mm x 14 slots, 20mm x 16 slots, 25mm x 16 slots, and 40mm x 16 slots.
Code: 18072
Description: RIFFLE SAMPLE DIVIDER, As per IS: 1607, BS : 812. The standard sizes are :13mm x 14 slots, 20mm x 16 slots, 25mm x 16 slots, and 40mm x 16 slots.
Name: STANDARD TAR VISCOMETER
Code: 18073
Description: STANDARD TAR VISCOMETER, Standard Tar Viscometer, 4 / 10 mm cup and ball valve, with Electrical Heating with energy regulator, Suitable for Operation on 220V, 50 Hz, single phase, AC supply.
Code: 18073
Description: STANDARD TAR VISCOMETER, Standard Tar Viscometer, 4 / 10 mm cup and ball valve, with Electrical Heating with energy regulator, Suitable for Operation on 220V, 50 Hz, single phase, AC supply.
Name: STANDARD TAR VISCOMETER
Code: 18073-00
Code: 18073-00

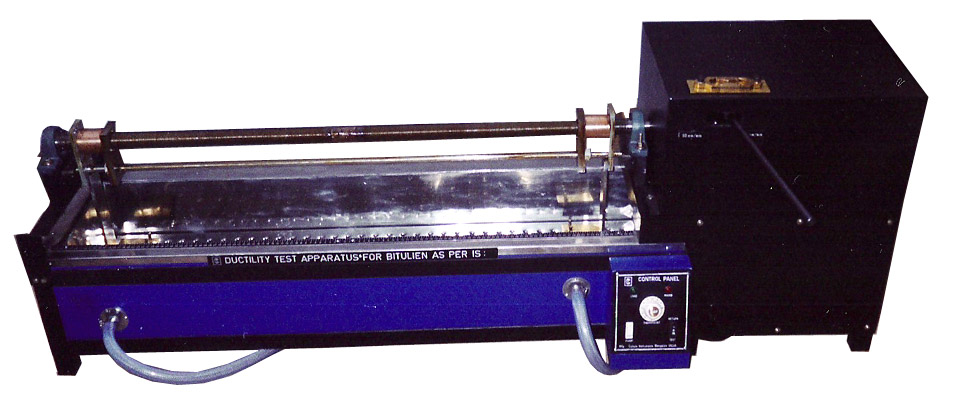

Name: DUCTILITY TESTING MACHINE,
Code: 18074
Description: DUCTILITY TESTING MACHINE, As per IS: 1208, Ductility is defined as distance in cms. to which a standard bitumen can be stretched before the thread breaks. The briquette is stretched at the rate of 50mm/min.
Code: 18074
Description: DUCTILITY TESTING MACHINE, As per IS: 1208, Ductility is defined as distance in cms. to which a standard bitumen can be stretched before the thread breaks. The briquette is stretched at the rate of 50mm/min.

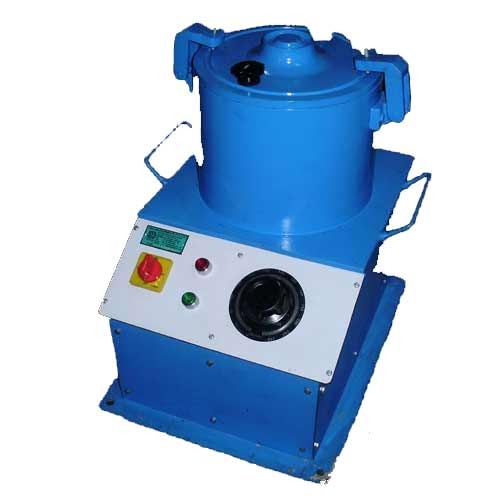

Name: BITUMEN EXTRACTOR
Code: 18077
Description: BITUMEN EXTRACTOR ELECTRICALLY OPERATED, Same as above, but shaft is rotated by an electric Motor and belt pitch pulley system. Variable speed 2000 RPM to 3500 RPM. Operated on 230V, AC Mains.
Code: 18077
Description: BITUMEN EXTRACTOR ELECTRICALLY OPERATED, Same as above, but shaft is rotated by an electric Motor and belt pitch pulley system. Variable speed 2000 RPM to 3500 RPM. Operated on 230V, AC Mains.

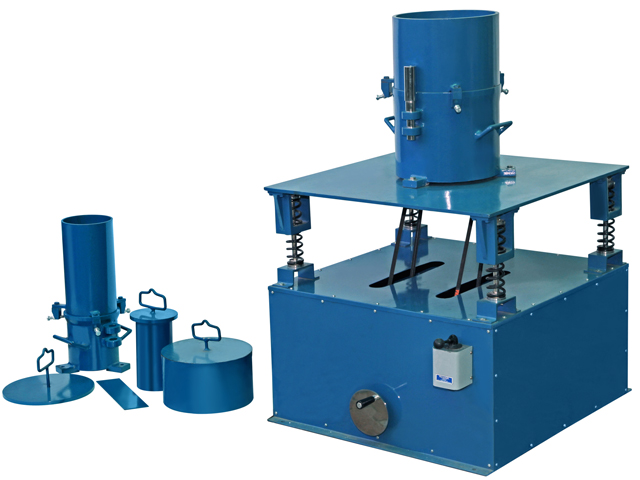

Name: RELATIVE DENSITY APPARATUS
Code: 18078
Description: RELATIVE DENSITY APPARATUS, The Equipment consists of one each: Vibratory table with a cushioned steel vibrating deck about 75cm x 75cm. It has a frequency of approx. 3600 vibrations per minute under 115kgs load. Amplitude is variable 0.45mm and 0.45mm to 0.65mm.
Code: 18078
Description: RELATIVE DENSITY APPARATUS, The Equipment consists of one each: Vibratory table with a cushioned steel vibrating deck about 75cm x 75cm. It has a frequency of approx. 3600 vibrations per minute under 115kgs load. Amplitude is variable 0.45mm and 0.45mm to 0.65mm.
Name: AUTOMATIC SAMPLE COMPACTOR
Code: 18079
Description: AUTOMATIC SAMPLE COMPACTOR, For compacting soil into 150mm dia. moulds the rammer feet for 2.6kg. and 4.89kg. are used whereas for 100mm dia. mould they are of 50mm dia. rammers.
Code: 18079
Description: AUTOMATIC SAMPLE COMPACTOR, For compacting soil into 150mm dia. moulds the rammer feet for 2.6kg. and 4.89kg. are used whereas for 100mm dia. mould they are of 50mm dia. rammers.

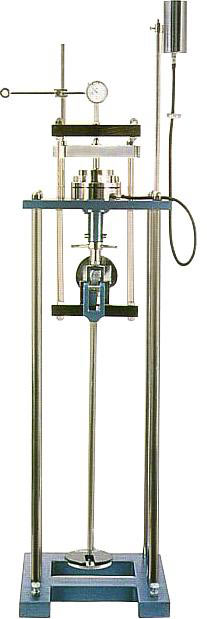

Name: CONSOLIDATION APPARATUS
Code: 18080
Description: CONSOLIDATION APPARATUS, SINGLE / THREE GANG. Consists of Loading Unit, maximum capacity 20kg/cm2, consisting of a loading yoke connected to a lever arm with a counter-balancing adjustment and having a lever ratio of 1:10
Code: 18080
Description: CONSOLIDATION APPARATUS, SINGLE / THREE GANG. Consists of Loading Unit, maximum capacity 20kg/cm2, consisting of a loading yoke connected to a lever arm with a counter-balancing adjustment and having a lever ratio of 1:10

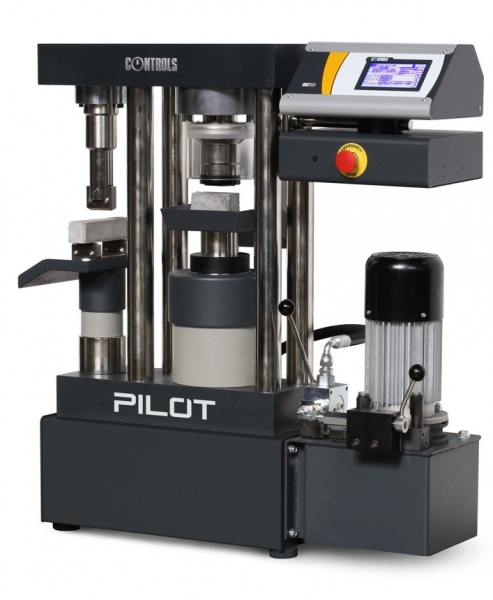

Name: FLEXTURE AND COMPRESSION TESTING MACHINE
Code: 18081
Description: FLEXTURE AND COMPRESSION TESTING MACHINE, Fully automatic test cycle. The complete test cycle is automatically performed by simply pressing the start button. Correct test execution according to selected Standards, is continuously and automatically controlled.
Code: 18081
Description: FLEXTURE AND COMPRESSION TESTING MACHINE, Fully automatic test cycle. The complete test cycle is automatically performed by simply pressing the start button. Correct test execution according to selected Standards, is continuously and automatically controlled.
