Name: PROCTOR NEEDLE (HYDRULIC)
Code: 18031-01
Description: PROCTOR NEEDLE (HYDRULIC), This is identical to (Spring type) except that the penetration pressure on the needle is conveyed through a hydraulic system on a pressure gauge 0 - 70 kg x 1 kg. This system permits a greater control over the rate of better visibility of load indication.
Code: 18031-01
Description: PROCTOR NEEDLE (HYDRULIC), This is identical to (Spring type) except that the penetration pressure on the needle is conveyed through a hydraulic system on a pressure gauge 0 - 70 kg x 1 kg. This system permits a greater control over the rate of better visibility of load indication.

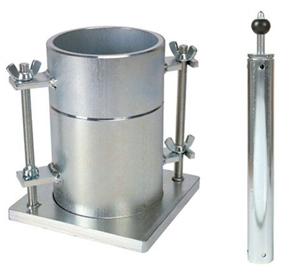

Name: PROCTOR MOULD AND RAMMERS
Code: 18032-00
Description: PROCTOR MOULD AND RAMMERS, As per IS:2720 100 mm dia x 127.3 mm Ht., Capacity: 1000cc
Code: 18032-00
Description: PROCTOR MOULD AND RAMMERS, As per IS:2720 100 mm dia x 127.3 mm Ht., Capacity: 1000cc

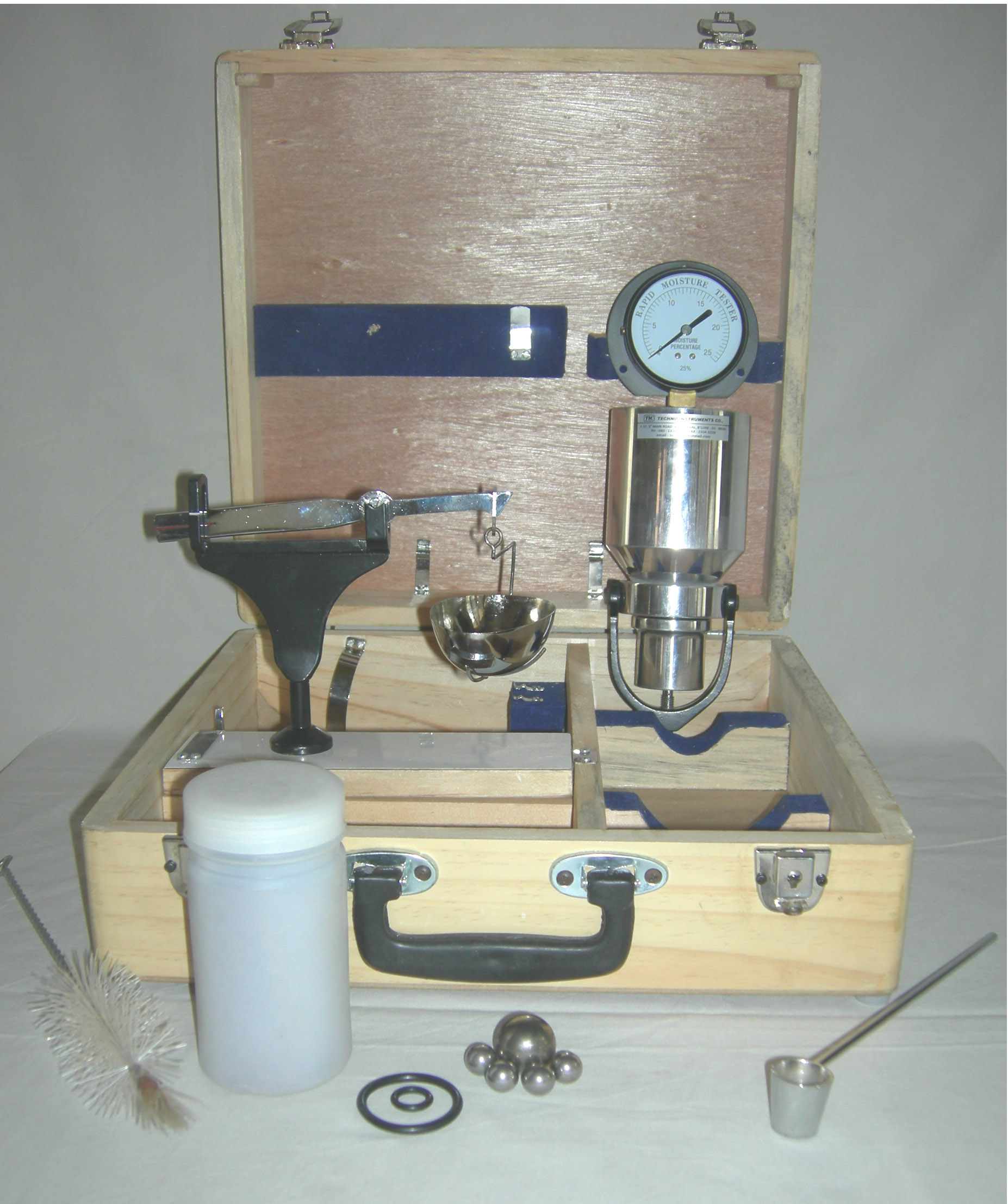

Name: RAPID MOISTURE METER
Code: 18033
Description: RAPID MOISTURE METER, The unit consists of a pressure vessel with clamp for sealing cap. Rubber sealing gasket, Pressure gauge 0- 25%, calibrated on the wet weight basis, a Counter poised balance for weighing sample, a Scoop for measuring carbide reagent, a bottle of reagent, one cleaning brush and a set of steel balls for through mixing.
Code: 18033
Description: RAPID MOISTURE METER, The unit consists of a pressure vessel with clamp for sealing cap. Rubber sealing gasket, Pressure gauge 0- 25%, calibrated on the wet weight basis, a Counter poised balance for weighing sample, a Scoop for measuring carbide reagent, a bottle of reagent, one cleaning brush and a set of steel balls for through mixing.
Name: FIELD DENSITY (SAND REPLACEMENT)
Code: 18034
Description: FIELD DENSITY (SAND REPLACEMENT), As per IS:2720, Sand Pouring Cylinder with calibrating can & metal tray of 30cm x 30cm with centre hole of 10cm.dia.
Code: 18034
Description: FIELD DENSITY (SAND REPLACEMENT), As per IS:2720, Sand Pouring Cylinder with calibrating can & metal tray of 30cm x 30cm with centre hole of 10cm.dia.

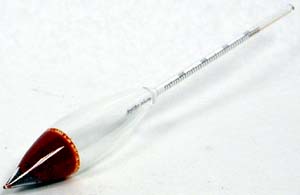

Name: SOIL HYDROMETER
Code: 18035
Description: SOIL HYDROMETER, AS Per IS:2720 (PART VI), Basically used for analysis of grain size distribution of fine grained soil. Range:0.995-1.030
Code: 18035
Description: SOIL HYDROMETER, AS Per IS:2720 (PART VI), Basically used for analysis of grain size distribution of fine grained soil. Range:0.995-1.030
Name: SHRINKAGE LIMIT APPARATUS
Code: 18038
Description: SHRINKAGE LIMIT APPARATUS, As per IS 2720 (Part - V), It is the maximum water content at which a reduction in water does not cause an appreciable reduction in volume of the soil mass.
Code: 18038
Description: SHRINKAGE LIMIT APPARATUS, As per IS 2720 (Part - V), It is the maximum water content at which a reduction in water does not cause an appreciable reduction in volume of the soil mass.
Name: SAMPLING TUBES
Code: 18039
Description: SAMPLING TUBES, Size: 38mm x 150mm, 38mm x 200mm, 38mm x 225mm, 38mm x 300mm
Code: 18039
Description: SAMPLING TUBES, Size: 38mm x 150mm, 38mm x 200mm, 38mm x 225mm, 38mm x 300mm
Name: TRIAXIAL LOADING FRAME
Code: 18041
Description: TRIAXIAL LOADING FRAME, Consists of a Loading Frame motorised capacity 50KN giving 30 rates of strain from 0.00048 mm/min to 6 mm/min.
Code: 18041
Description: TRIAXIAL LOADING FRAME, Consists of a Loading Frame motorised capacity 50KN giving 30 rates of strain from 0.00048 mm/min to 6 mm/min.
Name: AGGREGATE CRUSHING VALUE
Code: 18042
Description: AGGREGATE CRUSHING VALUE, The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under gradually applied compressive load. Aggregate crushing value apparatus As per IS:2386(P-IV) consists of a both end open cylinder. Base plate, a plunger with handle and tamping rod.
Code: 18042
Description: AGGREGATE CRUSHING VALUE, The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under gradually applied compressive load. Aggregate crushing value apparatus As per IS:2386(P-IV) consists of a both end open cylinder. Base plate, a plunger with handle and tamping rod.
Name: AGGREGATE IMPACT TESTER
Code: 18043
Description: AGGREGATE IMPACT TESTER, Complete with a cylindrical cup, 102mm dia x 50mm depth, one measure 75mm dia x 50mm deep and a tamping rod of circular cross section 10mm in dia. and 230mm long rounded at one end.
Code: 18043
Description: AGGREGATE IMPACT TESTER, Complete with a cylindrical cup, 102mm dia x 50mm depth, one measure 75mm dia x 50mm deep and a tamping rod of circular cross section 10mm in dia. and 230mm long rounded at one end.
